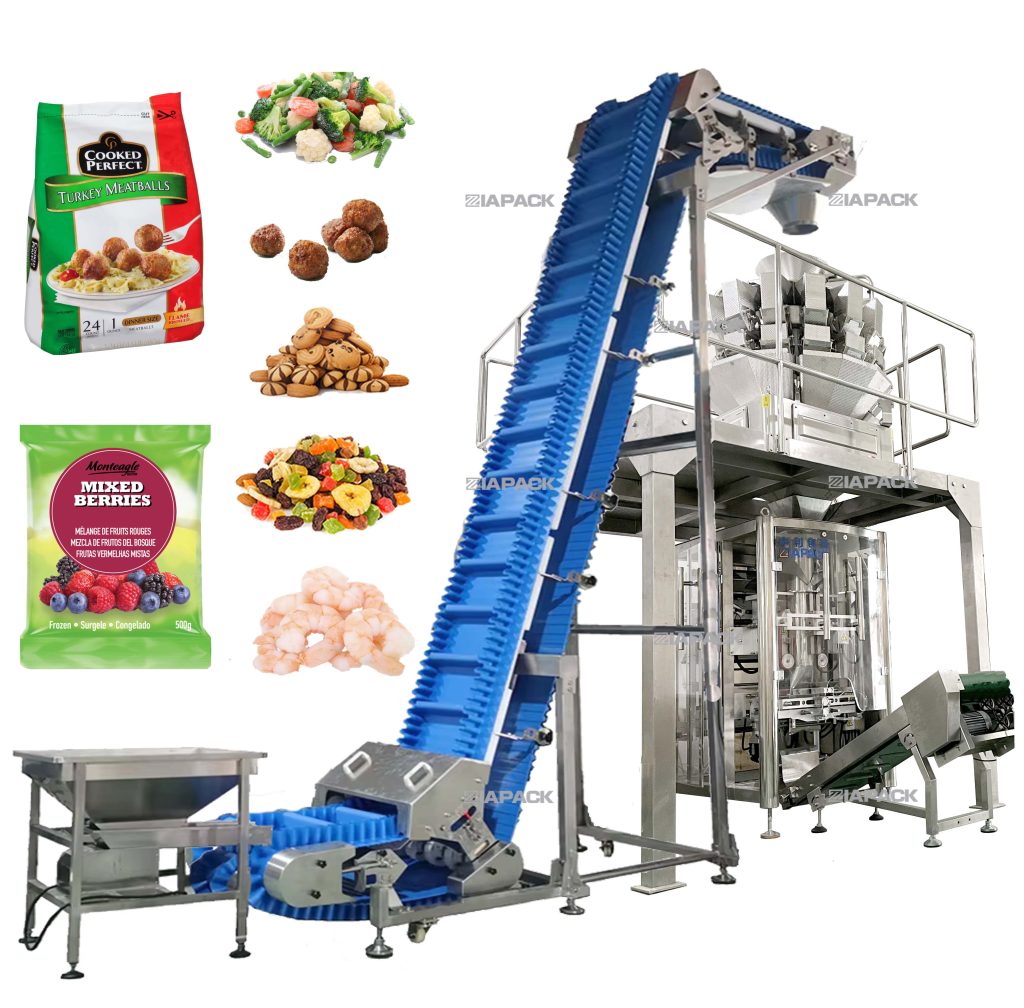

Automatic frozen food weighing filling packaging machine

ແນະນຳ:

This unit machine is special design for packaging frozen food like shrimp ,meat ball,Chicken pieces dumpling and Toufu in to plastic bag .The whole machine have the function of automatic product feeding ,weighing ,film bag forming ,bag sealing ,Including date coding ,bag counting .The finished bag is output from conveyor machine which no need manual collect the bag and avoid the bag polluting .

ຄໍາຮ້ອງສະຫມັກ:

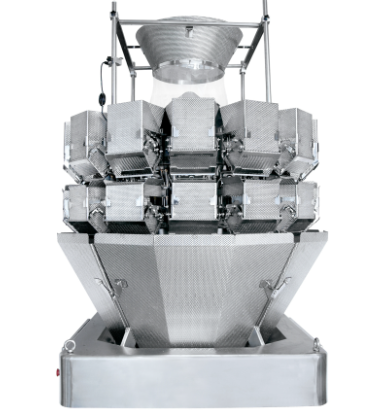

This weighting machine r is suitable for weighing different frozen food  like frozen fishes, fruit, frozen dumplings, rice dumplings, etc.,Adopt Dimple Plate and waterproof electric cabinet .Can Work in an environment with high humidity.

ຄຸນ​ລັກ​ສະ​ນະ:

1. Special load cell with high precision and high standard.
2. Program recovery function can reduce operation failures, support multi-segment weight calibration.
3. No products auto pause function can improve weighing stability and accuracy.
4. Linear amplitude can be adjusted independently, can make the feeding more uniform.
5. 15 languages available for global markets.
6. 100 programs capacity can meet various weighing requirement, user-friendly help menu in touch screen contributes to easy operation.

Mechanical  Character:

1. Ip65 cabinet design, dimple plate for food contact parts.
2. Air pressure system built in cabinet prevents the electronic components from damage because of humidity.
3. Uniform design standards contribute to better interchangeability for spare parts.
4. The whole cast aluminum thickening machine case enhanced the strength of the machine, and shorten sample stable time.
5. Optional weighing type material detection, accurate control of feeding time, material thickness, to ensure the accuracy of the weighing.

ຂໍ້ມູນຈໍາເພາະ:

ZL520 VFFS BAG FORMING FILLING PACKAGING MACHINE

ແນະນຳ:

ເຄື່ອງຈັກນີ້ສາມາດຮັບຮູ້ການທໍາງານຂອງຖົງ, ການຕື່ມຂໍ້ມູນ, ການຜະນຶກ, ການພິມ, ການຕັດ, ແລະອື່ນໆໂດຍອັດຕະໂນມັດ, ເຄື່ອງນີ້ສາມາດບັນລຸການຕື່ມແລະການປະທັບຕາຂອງຖົງອັດຕະໂນມັດ.

ເຄື່ອງຫຸ້ມຫໍ່ນີ້ຮັບຮອງເອົາມໍເຕີ servo ນໍາເຂົ້າສໍາລັບຟີມຟີມແລະການໂຕ້ຕອບຂອງເຄື່ອງຜູ້ຊາຍໃຊ້ຫນ້າຈໍສໍາຜັດແບບພິເສດ. ການດໍາເນີນງານງ່າຍດາຍແລະສະດວກຫຼາຍ. ອົງປະກອບທັງຫມົດຮັບຮອງເອົາຍີ່ຫໍ້ທີ່ມີຊື່ສຽງລະຫວ່າງປະເທດ, PLC ແມ່ນ SIEMENS, servo motor ແມ່ນ PANASONIC, ຫນ້າຈໍສໍາຜັດແມ່ນ SIEMENS, ກະບອກສູບແລະວາວອາກາດແມ່ນ SMC. ພາກສ່ວນທີ່ຕິດຕໍ່ກັບວັດສະດຸ, ຕູ້ຄວບຄຸມ, ກອບຕົ້ນຕໍແມ່ນເຮັດດ້ວຍສະແຕນເລດ 304

ພາລາມິເຕີທາງເທກນິກ:

ຄວາມໄວບັນຈຸ (MAX): 20-50bags/min

ປະເພດຖົງ: ຖົງຫມອນ.gusseted bag

Bag size: bag width 60-250mm bag length 80-350mm

ການ​ບໍ​ລິ​ໂພກ​ອາ​ກາດ​ບີບ​ອັດ​: 0.6 MPa 350 L / ນາ​ທີ​

ຄວາມຕ້ອງການໄຟຟ້າ: 380V / 5.5 kW50 Hz
