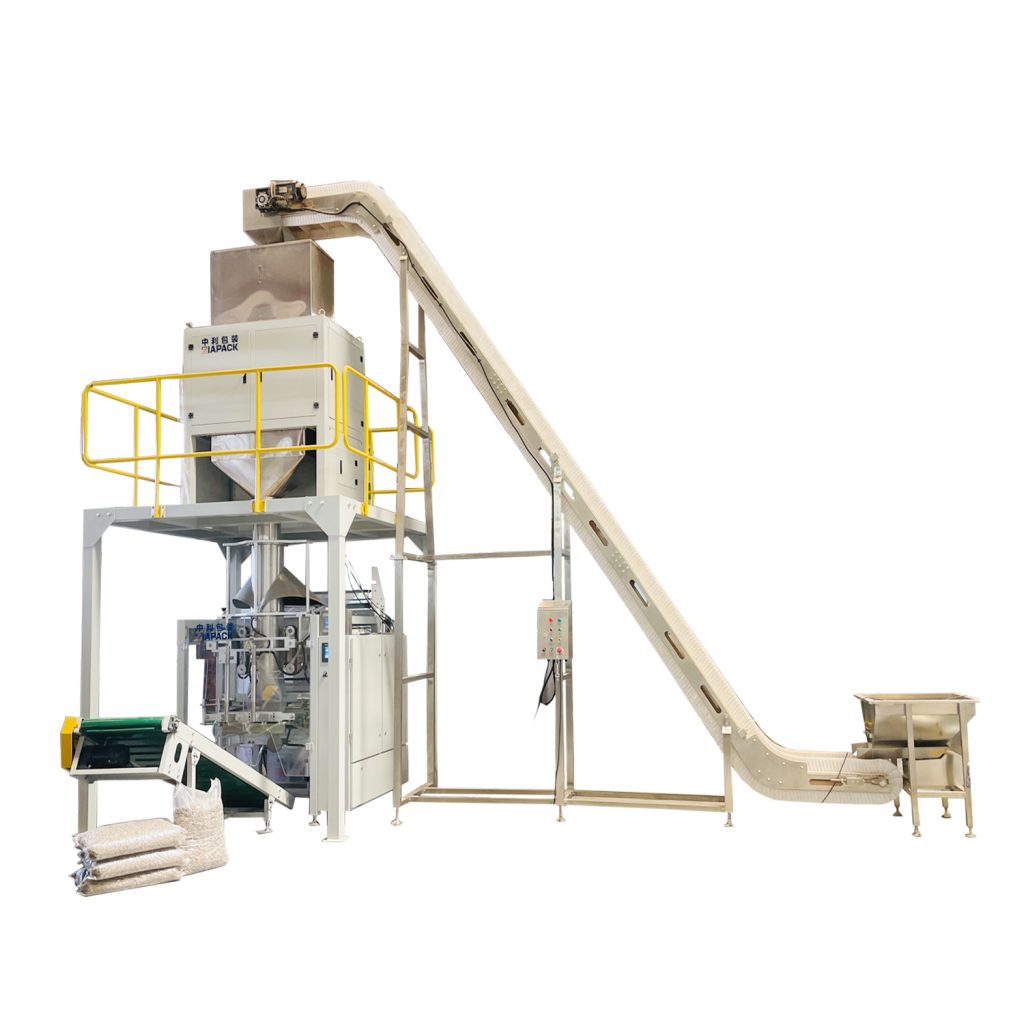

15kg ເມັດໄມ້ vffs bag forming filling sealing bagging machine

Automatic15-20 kg wooden pellets bag forming filling packaging machine

ແນະນຳ:

This unit machine is special design for packaging small piece products like nuts dates,chips, wooden pellets fertilizer and so on .The whole machine body made by SUS304 .Including product weighing filling machine ,VFFS bag forming sealing packaging machine ,one set platform for weighing machine and output conveyor for transfer the finished bag.According client requirement we can add handle hole punching device .

ພາລາມິເຕີທາງເທກນິກ:

Weighing Range: 1kg-5kg

Packaging Speed:12-30 bags/min

Bag size: (150-420)*(120-350)mm(L*W)

Max film width:720mm

ຄວາມຕ້ອງການອາກາດບີບອັດ: 0.6Mpa 0.65m³/ນາທີ

Reel outer diameter: 450mm

ເສັ້ນຜ່າສູນກາງພາຍໃນ: 75mm

Machine weight: 950kg

Power source: 6.5kW 380V±10% 50Hz

ຄຸນ​ນະ​ສົມ​ບັດ​ຕົ້ນ​ຕໍ​ແລະ​ລັກ​ສະ​ນະ​:

• ກະເປົ໋າຫຼາກຫຼາຍປະເພດ: ໝອນ ແລະ ຖົງຜ້າ Gusset.
• ຄວາມໄວສູງ: 20-50 ຖົງ / ນາທີ
• ງ່າຍ​ທີ່​ຈະ​ປະ​ຕິ​ບັດ​ງານ​: ຕົວ​ຄວບ​ຄຸມ PLC ແລະ​ການ​ສໍາ​ພັດ​ສີ​, ການ​ຊີ້​ບອກ​ຄວາມ​ຜິດ​ໃນ​ຫນ້າ​ຈໍ​ສໍາ​ພັດ​.
• ງ່າຍທີ່ຈະປັບ: ພຽງແຕ່ປະມານ 10 ນາທີເພື່ອປ່ຽນຖົງຕ່າງໆ.
• ການຄວບຄຸມຄວາມຖີ່: ຄວາມໄວສາມາດຖືກປັບໂດຍການປ່ຽນແປງຄວາມຖີ່ໃນລະດັບ.
• ລະບົບອັດໂນມັດສູງ: ບໍ່ມີນ້ໍາຫນັກໃນຂະບວນການບັນຈຸແລະບັນຈຸ, ເຄື່ອງເຕືອນອັດຕະໂນມັດໃນເວລາທີ່ຄວາມລົ້ມເຫຼວ.
• ຄວາມປອດໄພ ແລະສຸຂະອະນາໄມ:
• ບໍ່ມີຟິມ, ເຄື່ອງຈະປຸກ.
• ເຕືອນເຄື່ອງແລະຢຸດເວລາທີ່ຄວາມກົດດັນທາງອາກາດບໍ່ພຽງພໍ.
• ກອງຄວາມປອດໄພທີ່ມີລະບົບສະຫຼັບຄວາມປອດໄພ, ເຄື່ອງເຕືອນເຄື່ອງແລະຢຸດເວລາທີ່ປອດໄພເປີດ.
• Hygienic construction, the product contact parts are adopted sus316stainless steel.

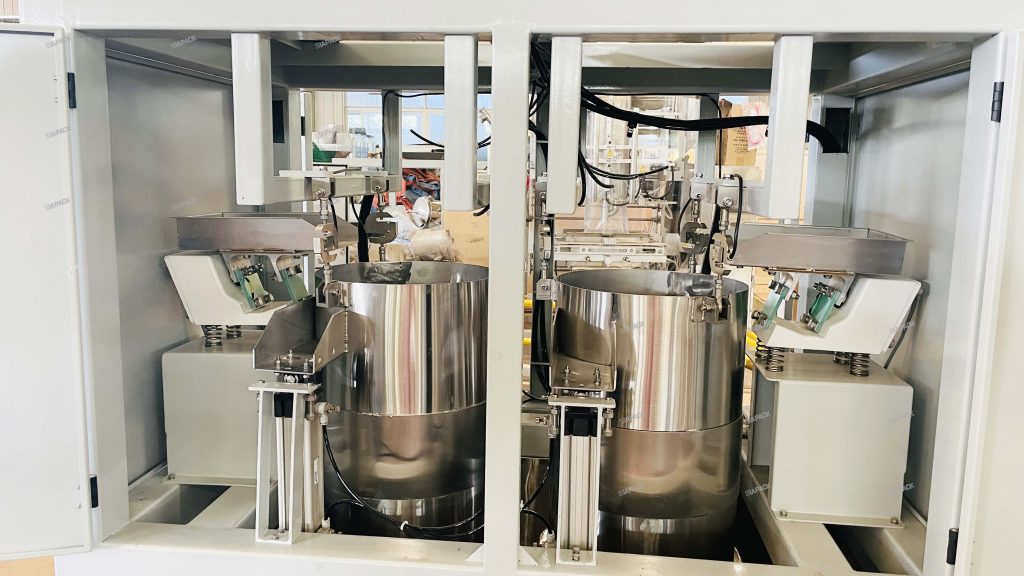

• ZLC2-15k double bucket weighing machine

  ແນະນຳ:

  This linear weight is dosing system for Free Flow Powders .Such as Detergent, Sugar, Salt, Spices, Milk powder various sorts of powders, etc. Also it is suitable for dosing granule products such as Coffee beans, Rice, Sesame Seeds, and Small Granules etc. Dry & Processed Foods: Snack foods, Cereal & Health Foods,Biscuits & Bakery, pasta, Grated Cheese, Nuts, Dried fruits, Pet Food

  ຄຸນ​ລັກ​ສະ​ນະ:

  1. 7” color touch screen with multi-language operating system. Software can be upgraded through USB.
  2. SUS304 material contact part ,Machine frame made by painted steel.High performance ondust and water proof design.
  3. Restoration function of factory parameter. 99 product parameters can be preset to meet different parameter program requirements.
  4. Amplitude can be automatically adjusted for easy operation.
  5. Each hopper can be used as single weigher.
  6. 6. With cylinder controlfor door open-close control , which is faster and more stable.
  7. 7. Modular control system for easy maintenance and cost-saving.

  Parameter:

  Weighing range :10-15kg

  Accuracy :±0.5-0.8%

  Min scale :0.1gram

  Max speed :20-40bag/min

  HIM:7” touch screen

  Power supply :AC220±10% 50HZ /60HZ 1KW
